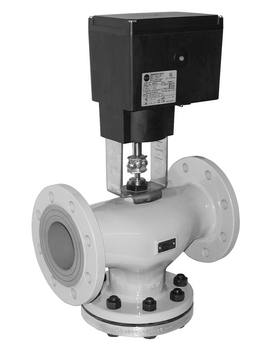

3260 - electric - DIN

Electric control valve

Valve style
Globe valve

USAGE

  • Low-pressure service
  • Throttling service

VERSION
DIN

MEDIUM TEMPERATURE
5 to 150 °C / 41 to 302 °F

SUPPLY
Electric

VALVE SIZE
DN 65 to DN 150

PRESSURE RATING
PN 16

Lining
without

Special features

  • Consisting of globe valve and actuator

Accessories

  • Type 2 NI Strainer

Options

  • Special version for oils

The valve 3260 - electric - DIN can be combinated with the following actuations:

Special features:

  • Linear actuator with 6 mm, 12 mm, or 15 mm rated travel
  • Force-locking connection with 6 mm and 12 mm rated travel, form-fit connection with 15 mm rated travel
  • Optionally three-step version or with digital positioner
  • Synchronous motor with maintenance-free planetary gear
Version with digital positioner:
  • Direction of action reversed by slide switch
  • Momentary travel calculated from transit time
  • Operating status and errors indicated by LEDs
  • Adjustable stroking speed
  • Blocking protection
  • Adjustable input and output signal ranges
  • Configuration, parameterization, diagnostic function, and online connection for monitoring using the TROVIS-VIEW software

Special features:

  • SAM DIGITAL READY
  • Linear actuator with 15 mm or 30 mm rated travel
  • 15 mm version optionally with fail-safe action (actuator stem retracts or extends)
  • Optionally three-step version or with digital positioner
  • Optionally with integrated yoke or ring nut including the necessary stem connecting parts
Three-step version:
  • Synchronous motor with maintenance-free planetary gear
Version with digital positioner:
  • Stepper motor with maintenance-free gearing
  • All function settings performed using a rotary pushbutton on the actuator
  • Configuration, parameterization, diagnostic function, and online connection for monitoring using the TROVIS-VIEW software

Special features:

  • Linear actuator with 6 mm, 12 mm, or 15 mm rated travel
  • Force-locking connection with 6 mm and 12 mm rated travel, form-fit connection with 15 mm rated travel
  • Optionally three-step version or with digital positioner
  • Motor switched off by torque-dependent limit contacts
Three-step version:
  • With synchronous motor and maintenance- free gear
Version with digital positioner:
  • Direction of action reversed by slide switch
  • Momentary travel calculated from transit time
  • Operating status and errors indicated by LEDs
  • Adjustable stroking speed
  • Blocking protection
  • Adjustable input and output signal ranges
  • Configuration, parameterization, diagnostic function, and online connection for monitoring using the TROVIS-VIEW software

Special features:

  • Linear actuator with 15 mm or 30 mm rated travel
  • Compact design including electric or optionally mechanical override
  • Optionally with fail-safe action (actuator stem retracts or extends) for version with electric override

Information

  • AB 05

    KV coefficient · Valve sizing
    [EN][DE]
  • T 5862

    Types 3260/3274, 3260/3374 Electric Control Valves
    Types 3260/3372, 3260-1, 3260-7 Pneumatic Control Valves
    Type 3260 Globe Valve
    [EN][DE][RU]
